Absolute Ozone Generators
Absolute Ozone generators are known for their unique maintenance-free design, high ozone output at very high ozone concentrations, a low oxygen rerquirement and a five-year warranty. All Absolute Ozone units are Oxygen Driven only.
ProMedUSA is your authorised and exclusive Absolute Ozone dealer for Singapore and Malaysia.
Absolute Ozone generators are made in Vancouver, Canada.
Choose Your Absolute Ozone Generators

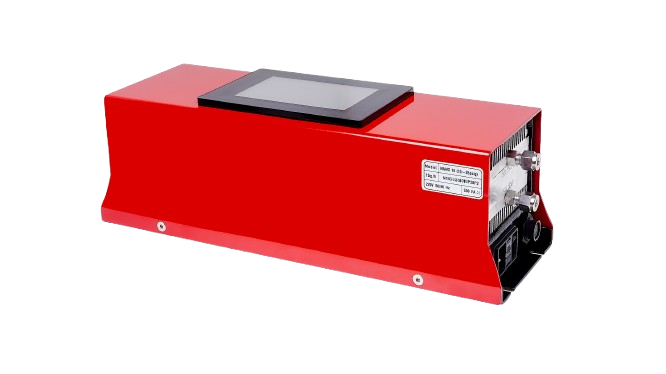

Absolute Ozone NANO 15
Small desk or bench or wall mounted footprint but up to 15 gm/hr.

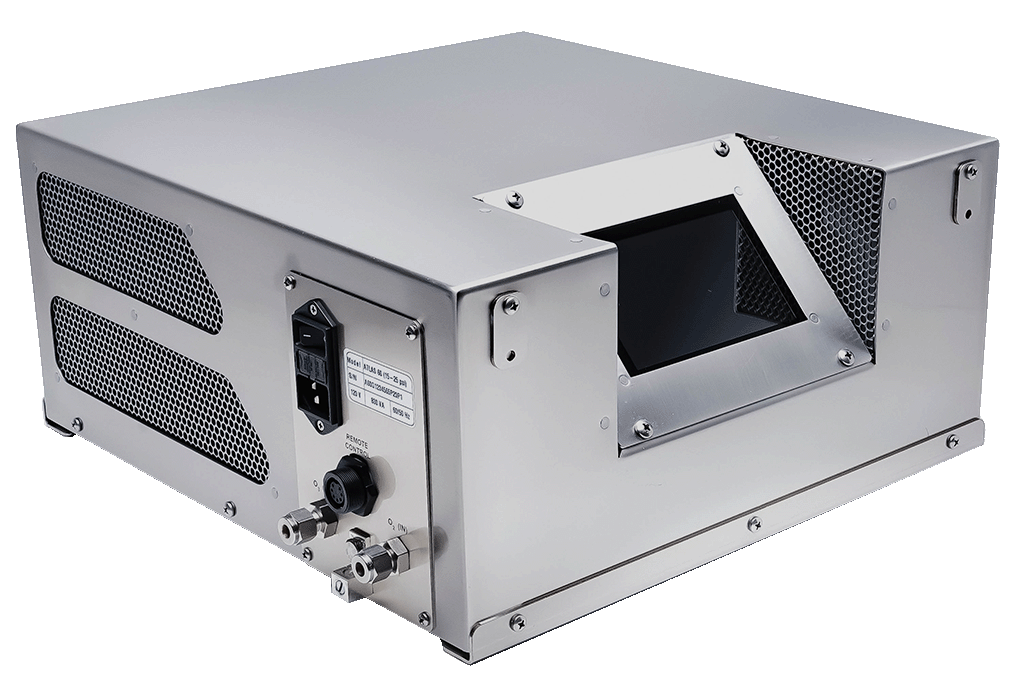

Absolute Ozone ATLAS
Benchmounted or wall mounted, the ATLAS range produces 30, 60, 80 or 100 gm/hr of highly concentrated ozone.

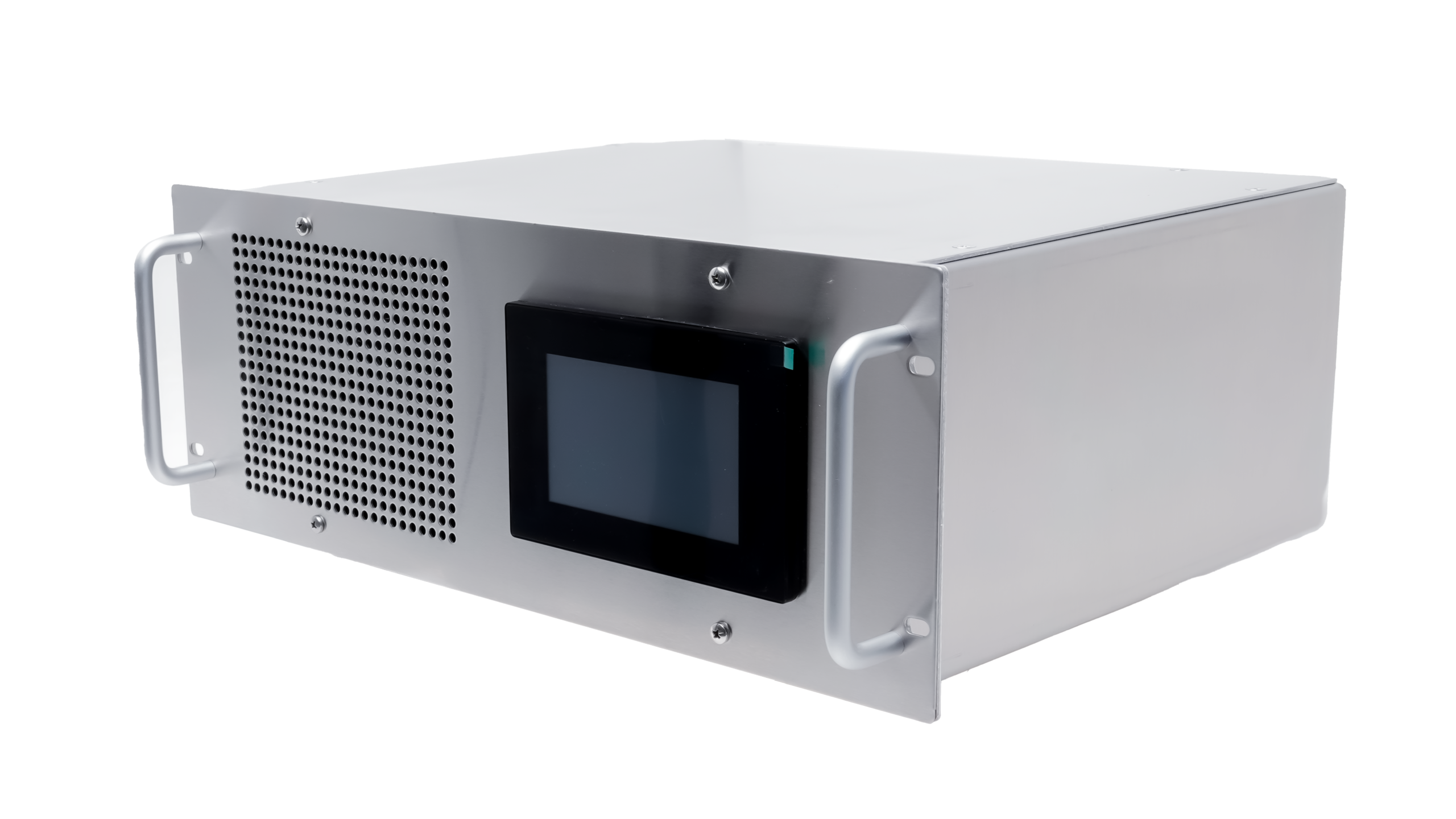

Absolute Ozone TITAN
Rackmounted, the TITAN range produces 30, 60, 80 or 100 gm/hr of highly concentrated ozone. Multiple units can be combined for greater ozone output.

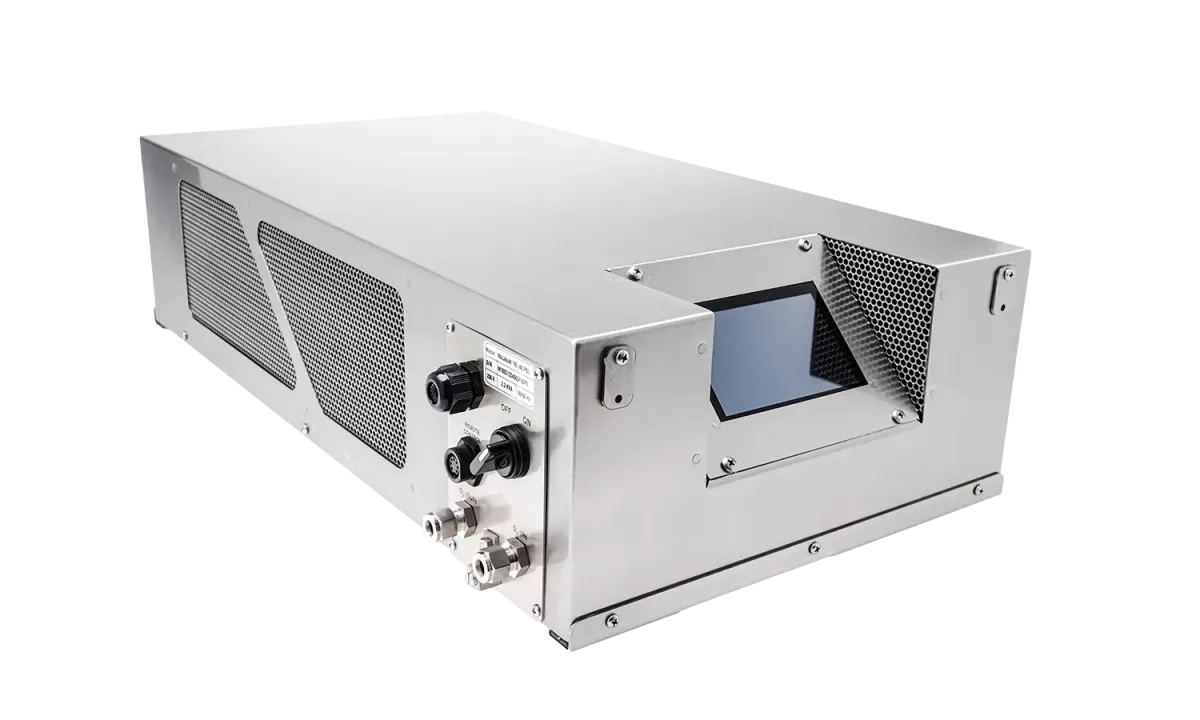

Absolute Ozone MAGNUM
Benchmounted or wall mounted, the MAGNUM range produces 120, 160, or 200 gm/hr of highly concentrated ozone.
Absolute Ozone Applications
- Ozone drinking water treatment.
- Ozone for water treatment for Aquatic Life Support
- Ozone food disinfection and storage.
- Ozone air purification and odor control
- Ozone soil remediation
- Ozone wastewater treatment
- Ozone bottled water disinfection.
- Ozone water treatment systems
- Water purification
- Oak barrel sanitization in wineries
- Pharmaceutical processes using ozone.
- Ozone for laboratory testing
- Ozone Laundry
- Ozone for semiconductor and atomic layer deposition, and more.
Warranty and Maintenance
Absolute Ozone units are guaranteed for five years and require minimal to zero maintenance over that period.
Questions People Ask About Absolute Ozone Generators
What is an Absolute Ozone generator?
It is an industrial ozone generator. It takes in pure oxygen and turns part of it into ozone gas. The ozone is then mixed into water, usually through an injector, or piped to where it is needed.
Who makes Absolute Ozone generators?
Absolute Ozone, based in Edmonton, Canada. The company has made ozone generators since 1985 and supplies more than 100 countries. ProMedUSA Pte Ltd is the [exclusive] distributor in [TERRITORY].
Which models are there?
NANO: 15 g/h, compact, for labs and pilot tests. ATLAS and TITAN: 30 to 100 g/h. MAGNUM: 120 to 200 g/h. [CONFIRM which models we offer.]
What is the difference between ATLAS and TITAN?
They cover the same output range. ATLAS sits on a bench or mounts on a wall. TITAN fits a standard 19-inch equipment rack and takes 4U of height
What do LP and UHC mean?
LP means low pressure. An LP model runs at 20 PSIG (about 1.4 bar), so it can work from ordinary oxygen concentrators. UHC means ultra-high concentration. The ATLAS UHC and TITAN UHC make up to 22% ozone by weight, at 20 g/h.
How big is an ATLAS?
About 356 x 381 x 178 mm. That is roughly the size of a desktop printer. [ADD weight once Part 1, item 6 is settled.]
Can I add more output later?
Yes. The units are built to stack and connect together. Systems can be expanded up to 5 kg of ozone per hour or more.
Oxygen, Power and The Room
Does it run on normal air?
No. It needs a supply of pure oxygen. Most sites use an oxygen concentrator, which makes oxygen from room air.
How much oxygen does it need?
Less than most generators, because it makes a higher concentration of ozone. An ATLAS 30 needs about 4 litres of oxygen per minute, so one oxygen concentrator is usually enough. An ATLAS 60 LP runs from two concentrators working together.
What is the difference between ATLAS 60 and ATLAS 60 LP?
Both make 60 g/h. The standard ATLAS 60 runs at 30 to 45 PSIG (about 2 to 3 bar) and needs an industrial oxygen system with an air compressor. The ATLAS 60 LP runs at 20 PSIG (about 1.4 bar) from two ordinary oxygen concentrators, which costs less to set up.
Does it need cooling water?
No. All models are air-cooled. There is no chiller, cooling water or water treatment to run.
What kind of room does it need?
A clean, dry, well-ventilated room kept at 20 to 22°C. In Singapore that means an air-conditioned plant room. If the room gets too hot, the generator lowers its power on its own to protect itself.
What power supply does it need?
Single-phase 220 to 230 V, which is standard in Singapore and Malaysia. [ADD the current for each model we offer, once Part 1, item 3 is settled.]
What else is needed to put ozone into water?
An ozone-resistant flow meter, an anti-flood device with a check valve, an injector to mix the gas into the water, and a contact tank. An ozone destructor on the vent line is recommended. Every part that touches ozone must be ozone-resistant. [CONFIRM what ProMedUSA supplies as a package.]
Controls and Safety
How do I control it?
A 5-inch touchscreen shows voltage, current, power, gas pressure and the temperature inside the ozone cell. You switch it on and off and set the power on the screen. It also takes a 4-20 mA signal, so a plant control system can run it.
What happens if something goes wrong?
The generator shuts itself down and the screen shows the cause, such as low gas pressure, high temperature or wrong voltage. It keeps checking, and restarts on its own once the problem is fixed.
Is ozone gas dangerous?
Yes, at the strength these machines make. The gas must stay inside sealed, ozone-resistant lines. Any leftover gas should be vented through an ozone destructor. We recommend an ozone monitor in the room. [CONFIRM we supply monitors with these systems.]
Performance
What does % by weight mean?
It is how much of the gas coming out is ozone, by weight. A higher percentage means more ozone in every litre of oxygen.
Why does a higher concentration matter?
When ozone gas is more concentrated, more of it dissolves into water. That is basic physics, known as Henry’s law. It also means you need less oxygen to deliver the same amount of ozone.
Why do the output and concentration figures change?
They trade off against each other. Low oxygen flow gives the highest concentration but less ozone per hour. Full flow gives the most ozone per hour at a lower concentration. For example, an ATLAS 30C gives 16.4% at 0.5 litres per minute, and 29.3 g/h at 9.2% at 4 litres per minute. Absolute Ozone tested these at 20°C after 30 minutes of running.
What are they used for?
Wastewater and drinking water treatment, pools and water parks, aquaculture and hatcheries, food processing and storage, laboratories and research, semiconductor plants, laundries, agriculture, and air and soil clean-up.
Need Help Choosing the Right Absolute Ozone Generator?
From the compact NANO 15 to the high-output MAGNUM range, the right generator depends on your ozone requirements, application and installation setup. Tell us what you need to treat, and our team can recommend the appropriate Absolute Ozone system for your project.
