Absolute Ozone ATLAS and TITAN

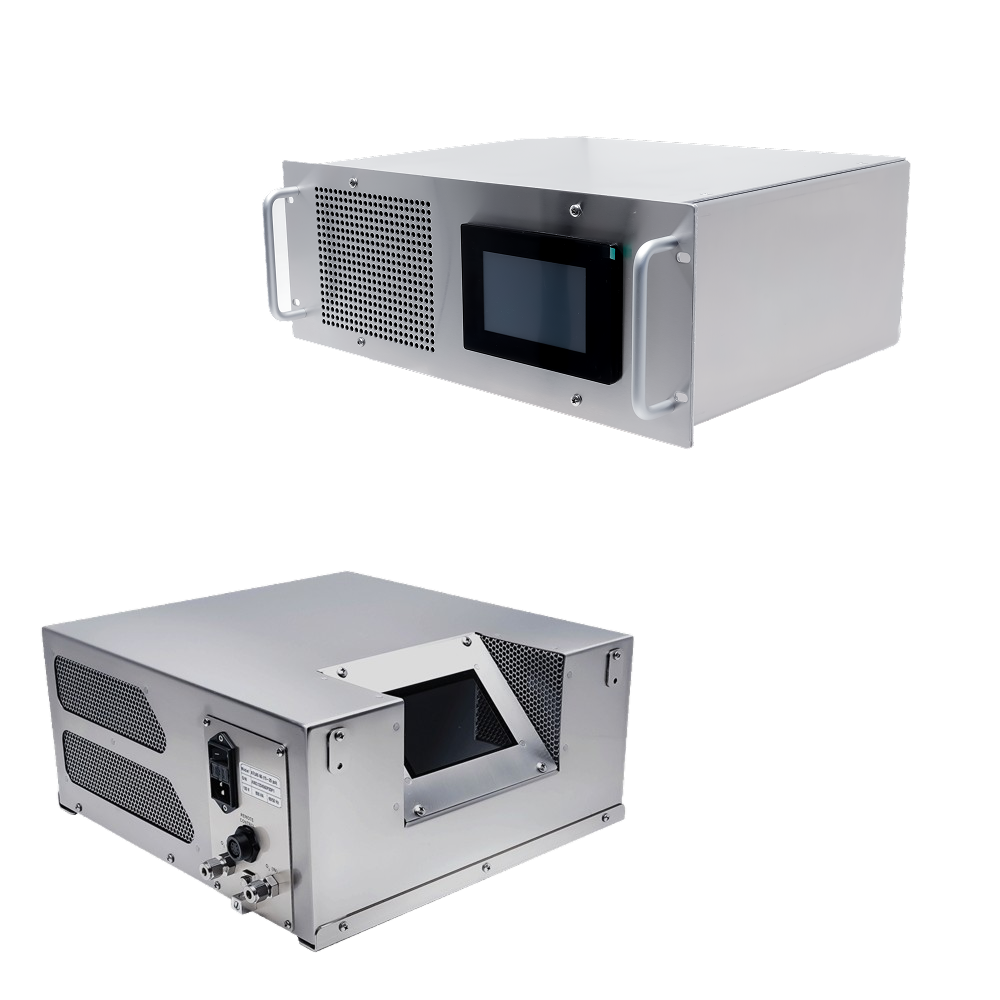

ATLAS and TITAN are the same machine in two different boxes. ATLAS is the standard cabinet. TITAN is the rack-mounted version for a server rack or a control cabinet. The performance is identical — pick the housing that fits your space.
Seven sizes, from 20 g/h up to 100 g/h. All air cooled, so there is no cooling water to plumb in or pay for.
ProMedUSA is the exclusive Singapore distributor for Absolute Ozone.
Titan / Atlas Specifications
The ATLAS model and TITAN model are basically the same unit. The difference is the TITAN model is for rack mounting and the Atlas is either bench mount or wall mounted.
| Specification | Detail |
|---|---|
| Size (30 to 100 g/h models) | Varies by Model: please consult the model's brochure for details |
| Weight | Varies by Model: please consult the model's brochure for details |
| Cooling | Air cooled. No cooling water needed. |
| Oxygen use | The ATLAS 30 needs only 4 litres per minute of oxygen to make 30 g/h. Most machines in the industry need 9 to 14. |
ATLAS 30 / TITAN 30
| What | Detail |
|---|---|
| Ozone Output | 30 g/h |
| Pressure | 20 PSIG |
| Concentration | 9–12 % by weight |
| Power | 230 V, 3.0 A |
ATLAS 30C / TITAN 30C
| What | Detail |
|---|---|
| Ozone Output | 30 g/h |
| Pressure | 20 PSIG |
| Concentration | 9–14 % by weight |
| Power | 230 V, 3.0 A |
ATLAS UHC / TITAN UHC
| What | Detail |
|---|---|
| Ozone Output | 20 g/h |
| Pressure | 20 PSIG |
| Concentration | up to 22 % by weight |
| Power | 230 V, 2.1 A |
ATLAS 60 / TITAN 60
| What | Detail |
|---|---|
| Ozone Output | 60 g/h |
| Pressure | 30–45 PSIG |
| Concentration | 6–12 % by weight |
| Power | 230 V, 3.7 A |
ATLAS 60LP / TITAN 60LP
| What | Detail |
|---|---|
| Ozone Output | 60 g/h |
| Pressure | 20 PSIG |
| Concentration | 6–12 % by weight |
| Power | 230 V, 3.7 A |
ATLAS 80 / TITAN 80
| What | Detail |
|---|---|
| Ozone Output | 80 g/h |
| Pressure | 30–45 PSIG |
| Concentration | 6–12 % by weight |
| Power | 230 V, 4.7 A |
ATLAS 100 / TITAN 100
| What | Detail |
|---|---|
| Ozone Output | 100 g/h |
| Pressure | 30–50 PSIG |
| Concentration | 5–12 % by weight |
| Power | 230 V, 5.8 A |
What It Is Used For
- Commercial kitchen exhaust on larger or multiple ducts.
- Commercial and industrial water treatment.
- Aquariums and fish farming.
- Factory process water and waste water.
Warranty
Absolute Ozone generators carry a five-year parts and labour warranty. Absolute Ozone state that all parts have a service life of 15 to 20 years and do not need repair or replacement in that time.
Need Help Choosing the Right ATLAS or TITAN?
From commercial exhaust treatment to water treatment and aquaculture, the ATLAS and TITAN range offers different ozone outputs and configurations for different applications.
Talk to ProMedUSA about your application, required ozone output and installation requirements.
