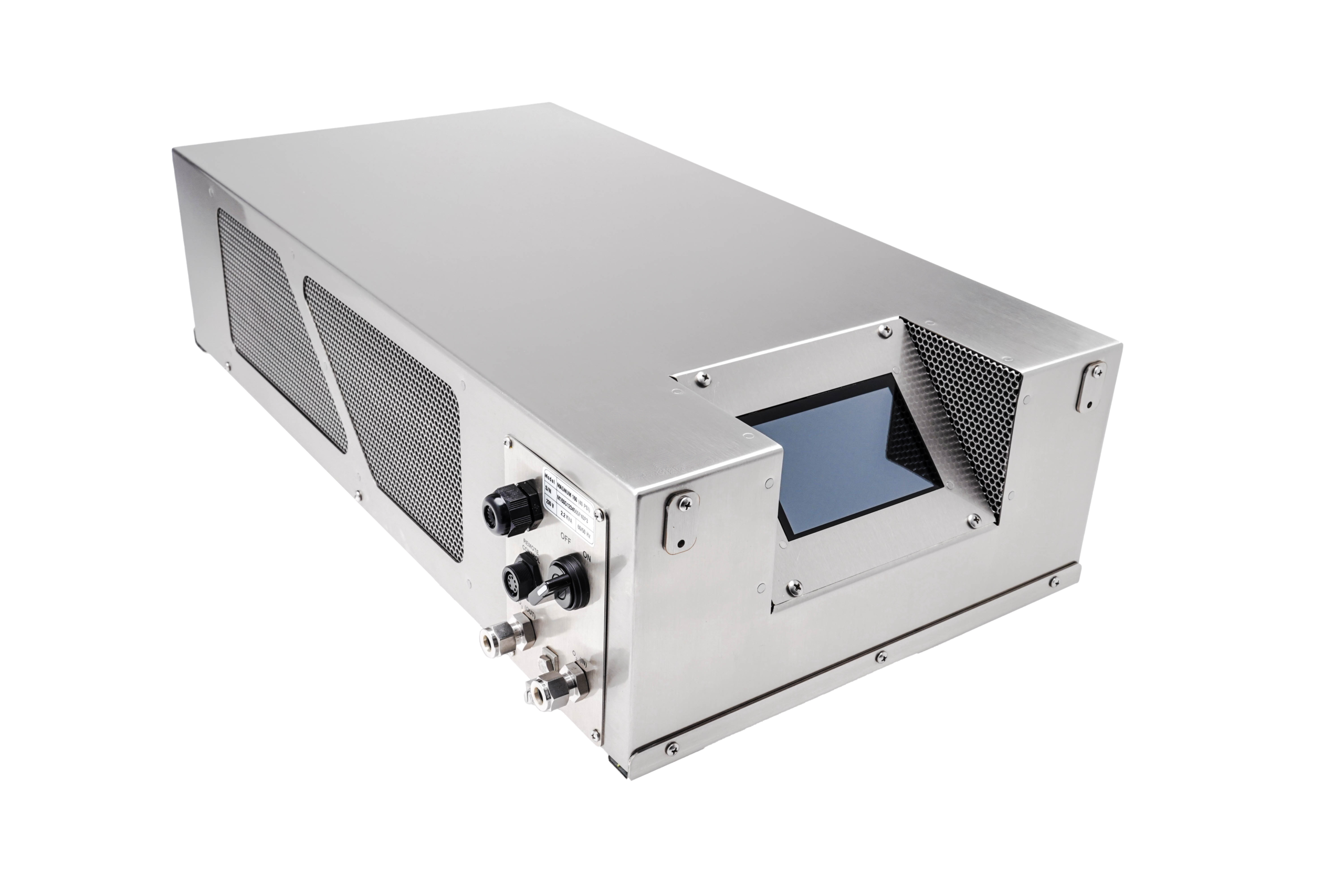

Absolute Ozone MAGNUM
The largest machines in the Absolute Ozone range. Three sizes from 120 g/h up to 200 g/h, for industrial water treatment and the biggest exhaust jobs. Still air cooled, so there is no cooling water system to install or run.
The range can be built up to 5 kg per hour and beyond if a project needs it.
ProMedUSA is the exclusive Singapore distributor for Absolute Ozone.
Specifications
| What | Detail |
|---|---|
| Cooling | Air cooled. No cooling water needed. |
| Expandable to | 5 kg per hour and above |
| Construction | Leak proof, tested to 150 PSIG. Stainless steel or aluminium enclosure. |
Magnum 120
| What | Detail |
|---|---|
| Ozone Output | 120 g/h |
| Pressure | 20 PSIG |
| Concentration | 6–12 % by weight |
| Power | 230 V, 7.3 A · max 1300 W |
Magnum 160
| What | Detail |
|---|---|
| Ozone Output | 160 g/h |
| Pressure | 30–45 PSIG |
| Concentration | 6–12 % by weight |
| Power | 230 V, 9.4 A |
Magnum 200
| What | Detail |
|---|---|
| Ozone Output | 200 g/h |
| Pressure | 30–50 PSIG |
| Concentration | 5–12 % by weight |
| Power | 230 V, 11.5 A |
What It Is Used For
- Large industrial water treatment.
- Waste water and effluent.
- Large aquaculture systems.
- Big multi-duct exhaust installations.
Warranty
Absolute Ozone generators carry a five-year parts and labour warranty. Absolute Ozone state that all parts have a service life of 15 to 20 years and do not need repair or replacement in that time.
Need a Higher Ozone Output?
The Absolute Ozone MAGNUM range is designed for large-scale water treatment, wastewater, aquaculture and high-volume exhaust applications, with systems expandable to 5 kg/h and beyond.
Tell us your application and required ozone capacity. ProMedUSA can help you determine the right MAGNUM configuration for your project.
