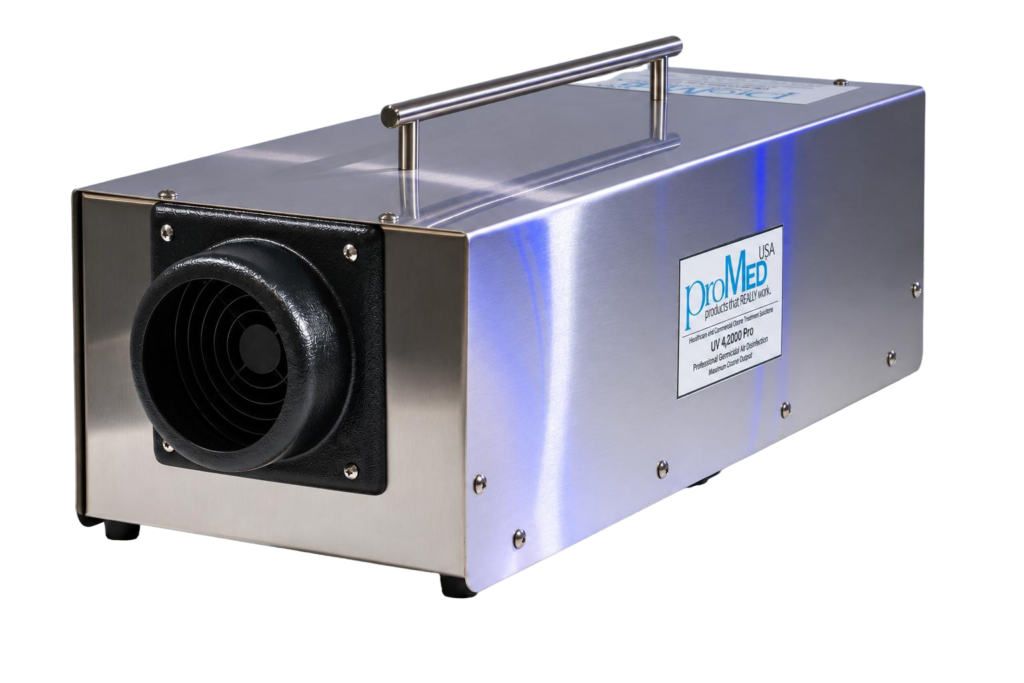

UV SG4200T36 Pro Ozone Generator
For larger bin centres, compactor rooms and restoration work
Physically the same size ozone generator as the SG3000 but this has 7 UV tubes inside that gives it more power — up to 4,200 mg/h with seven output levels. Choose this one when the smell is heavier, the space is bigger or the space needs clearing faster.
The UV SG4200T36 Pro can handle a space of up 20,000 m³ in about two hours. About 500 m³ in under 10 minutes.
The outer case is 18 gauge brushed 316 stainless steel — rust proof, and built to be left running in a bin room or a plant room without complaint. The UV tubes sit in industrial shock mounts.Â
Manufactured in Vancouver, Canada, exclusively for ProMedUSA.
UV SG4200T36 Pro Specifications
| Specification | Detail |
|---|---|
| Ozone output (also called Activated Oxygen) | 600 to 4,200 mg/h |
| Output levels | Six |
| Ozone Generation Method | 7 High Output, UV Tubes (Made exclusively for ProMedUSA) |
| Warranty | 6 YEARS on the Ozone Generator, 2 YEARS unconditional warranty on the UV Tube (not pro-rated) |
| Coverage area | Areas up to 20,000 CuM |
| Power | 220-240VAC, 50/60 hz; 4 Amp |
| Size and Weight | 60 X 23 X 18 CM; Just 9.5 KG |
| Construction | The outer case is rust proof 18 gauge brushed 316 stainless steel It is built to survive years of intense use. |
| Timer | 9 Position Electronic LED Timer - automatic settings from 10 minutes to 36 hours |
| Temperature & Humidity Range | −10°C to +50°C. Up to 98% relative humidity |
What It Is Used For

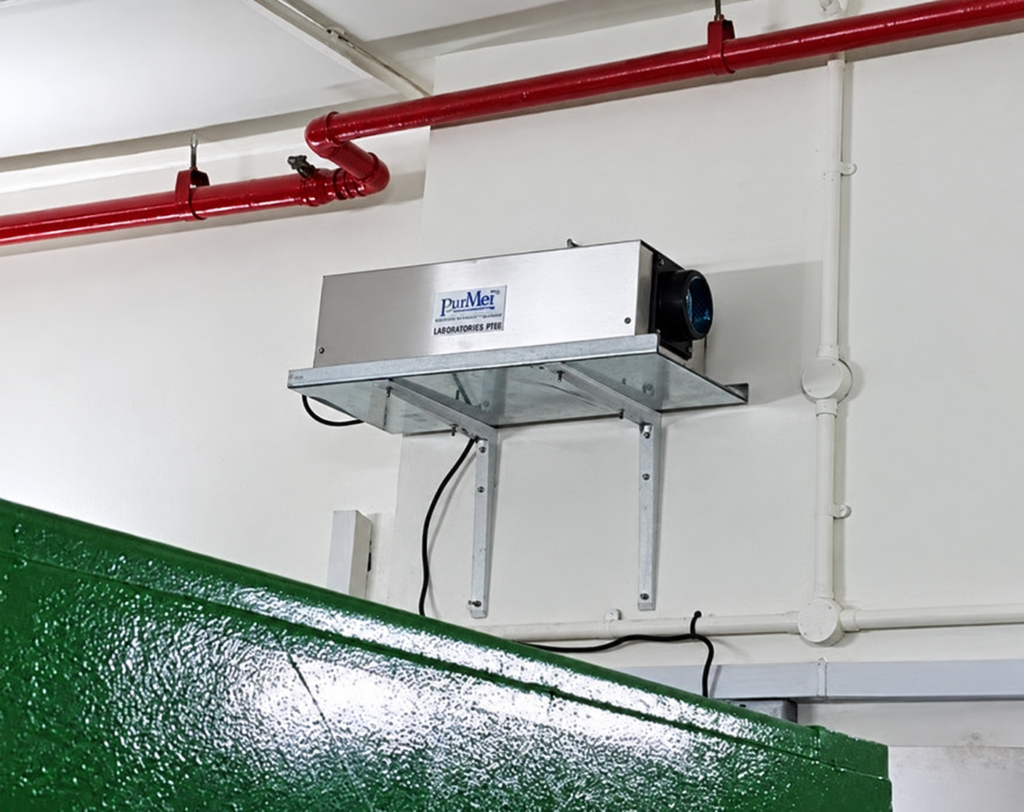

Bin rooms with heavy loads. Grease trap and compactor rooms. Major renovation and fit-out work. Mould and Mildew elimination, Fire and flood restoration, food courts and F&B.
These UV ozone generators are often in empty rooms or bin centres or a space where people walk in and out of quickly. Otherwise, turn the unit off and wait a few minutes for the ozone to revert back into plain oxygen before going back into the room.
Maintenance
Replace the rear filter on the back about every three months, depending on how dirty it gets. It takes less than 30 seconds (snaps on and off) needs no tools, and your own staff can do it. Replacement filters cost just $3.00 each.
The UV tubes typically last two to four years in normal use and we supply replacements. Depending on the environment, occasionally open the UV SG4200 and wipe down the tubes with soap and water, or preferably alcohol, and let them dry thoroughly before turning the unit back on. Again, you can do it yourself. You don’t need a maintenance contract.
That is the whole maintenance schedule.
Warranty
All ProMedUSA UV ozone generators have a 6 (six) year International warranty on the ozone generator and our UV Tubes are unconditionally guaranteed (not pro-rated) for 2 full years.
If the machine fails inside six years we repair it free of charge. If a UV tube fails inside two years we replace it free of charge.
Questions People Ask Us About the SG4200
Same machine size, same case, more power as it has 2 additional UV Tubes inside.
The SG3000 reaches 3,000 mg/h and clears up to 11,100 cubic metres. This one reaches 4,200 mg/h and clears up to 20,000 cuM.
Choose the SG3000 for a standard bin room or grease trap room. Choose this one for heavier loads, bigger spaces, major renovation work, or mould, mildew, fire and flood restoration.
About 500 cubic metres in under ten minutes. 10,000 cubic metres in about an hour. Up to 20,000 cubic metres in around two hours.
Yes, it’s designed to run continuously, 24/7. However, with the standard LED timer you can set it for a specific length of time or we can instal;l a wall mounted timer for daily on-off cycles.
Replace the rear filter on the back about every three months, depending on how dirty it gets. It takes less than 30 seconds (snaps on and off) needs no tools, and your own staff can do it. Replacement filters cost just $3.00 each.
The UV tubes typically last two to four years in normal use and we supply replacements. Depending on the environment, occasionally open the UV SG4200 and wipe down the tubes with soap and water, or preferably alcohol, and let them dry thoroughly before turning the unit back on. Again, you can do it yourself. You don’t need a maintenance contract.
Yes, and it is one of the jobs this model suits best. Smoke and damp leave smells in materials that ordinary cleaning will not shift, and ozone oxidises the residue, and kills the mould spores quickly.
Restoration work usually needs the higher output and the longer timer settings, which is why this model rather than the SG3000.
We repair it, free of charge, for six years. The UV tubes are covered for two years with no conditions.
UV SG4200’s we sold in 2013 are still working.
Need Something Bigger?
UV SG3000T36 Pro — same case size, up to 3,000 mg/h, for standard bin rooms and grease trap rooms.
UV SG7000T36 Pro — same case size, but 12 tubes inside instead of 7, more output again, for compactor rooms and large refuse areas.
Not Sure Which Size You Need?
Tell us the room, what is in it and how bad it gets. We will tell you which machine fits and what setting to run it on.
We have been supplying these to hotels, food courts, building managers, hospitals and restoration contractors across Singapore and Malaysia since 2006.
