UV SG15000T36 UltraMax Ozone Generator
The highest output portable UV ozone generator ProMedUSA makes. Three output levels — 5,000, 10,000 and 15,000 mg/hr. It removes odours from an 1,800 cubic metre space in about 10 minutes, a 30,000 cubic metre space in about an hour, and a 70,000 cubic metre space in one to two hours. This is the machine for problems nothing else will fix.
The outer case is 18 gauge brushed 316 stainless steel — rust proof, and built to be left running in a bin room or a plant room without complaint. The UV tubes sit in industrial shock mounts.Â
Manufactured in Vancouver, Canada, exclusively for ProMedUSA.
UV SG15000T36 UltraMax Specifications
| Specification | Detail |
|---|---|
| Ozone output (also called Activated Oxygen) | 5,000, 10,000 or 15,000 mg/h |
| Output levels | Three |
| Coverage Area | Up to 70,000 cubic metres |
| Ozone Generation Method | 12 High Output, UV Tubes (Made exclusively for ProMedUSA) |
| Warranty | 6 YEARS on the Ozone Generator, 2 YEARS unconditional warranty on the UV Tube (not pro-rated) |
| Uses | It is ideal for use in Bin Centres and Grease Trap Rooms, Hotel & Property Engineering Renovation Odour Removal, Mould Remediation, AHU’s and HVAC’s, Kitchen Exhaust Duct odour and Grease removal, Hospitals, Clinics, Medical Centres, Laboratories, Offices |
| Power | 220-240VAC, 50/60 hz; 650 Watts |
| Size and Weight | 60 X 23 X 18 CM; Just 13 KG |
| Construction | The outer case is rust proof 18 gauge brushed 316 stainless steel It is built to survive years of intense use. |
| Timer | 9 Position Electronic LED Timer - automatic settings from 10 minutes to 36 hours |
| Temperature & Humidity Range | −10°C to +50°C. Up to 98% relative humidity |
What It Is Used For
The largest bin centres and refuse handling areas. Grease trap rooms. Very large warehouses and indoor car parks. Major fire and flood restoration. Whole-floor renovation and fit-out. Hotel and property engineering after building work. Kitchen exhaust ducts. AHUs and HVAC plant rooms. Musty and mildew-related odours.

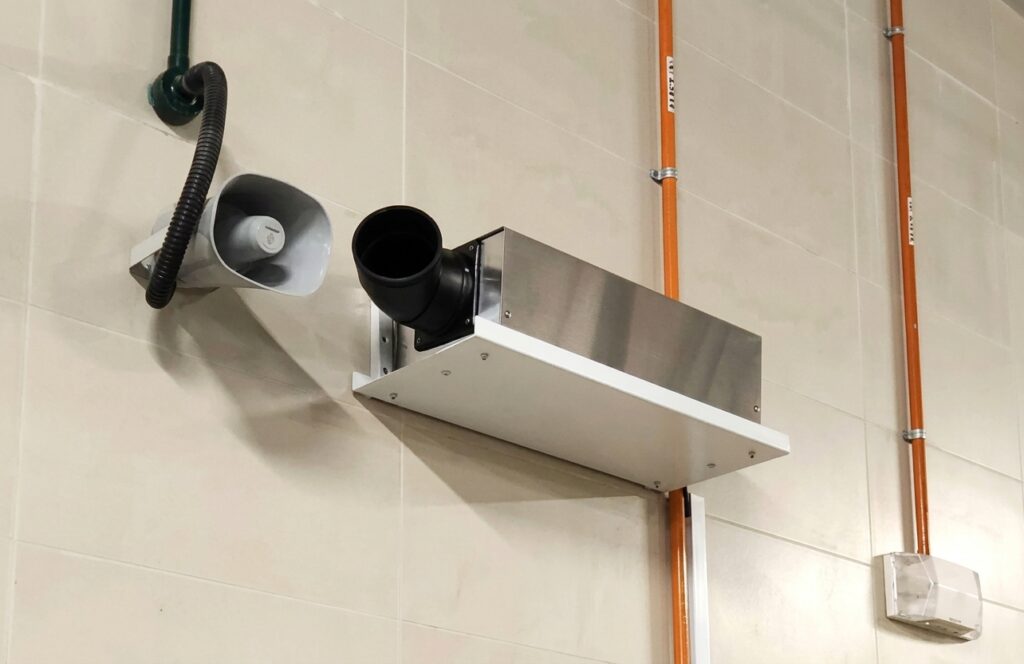

Carried in for a one-off job, or mounted on a frame and left in place to prevent the odours or mould from coming back.
These UV ozone generators are often in empty rooms or bin centres or a space where people walk in and out of quickly. Otherwise, turn the unit off and wait a few minutes for the ozone to revert back into plain oxygen before going back into the room.
Maintenance
Replace the rear filter on the back about every three months, depending on how dirty it gets. It takes less than 30 seconds (snaps on and off) needs no tools, and your own staff can do it. Replacement filters cost just $3.00 each.
The UV tubes typically last two to four years in normal use and we supply replacements. Depending on the environment, occasionally open the UV SG15,000 and wipe down the tubes with soap and water, or preferably alcohol, and let them dry thoroughly before turning the unit back on. Again, you can do it yourself. You don’t need a maintenance contract.
That is the whole maintenance schedule.
Warranty
All ProMedUSA UV ozone generators have a 6 (six) year International warranty on the ozone generator and our UV Tubes are unconditionally guaranteed (not pro-rated) for 2 full years.
If the machine fails inside six years we repair it free of charge. If a UV tube fails inside two years we replace it free of charge.
Do you need this one, or the SG7000T36 Pro?
It comes down to how big the space is.
The SG7000T36 Pro runs from 1,200 to 7,000 mg/hr and handles spaces up to about 29,000 cubic metres. For most bin centres, grease trap rooms and renovation jobs, that is the machine.
The SG15000T36 UltraMax runs from 5,000 to 15,000 mg/hr and handles spaces up to about 70,000 cubic metres. Choose this one for the largest refuse halls, whole-floor renovations, major restoration work and very large warehouses — or where you need the job finished faster.
Questions People Ask Us
An 1,800 cubic metre space in about 10 minutes. A 30,000 cubic metre space in about an hour. A 70,000 cubic metre space in one to two hours. A stronger smell takes longer.
It is about space size and the composition of the odours, or severity of the mould issue.. The SG7000T36 Pro handles up to about 29,000 cubic metres and suits most bin centres, grease trap rooms and renovation jobs. This one handles up to about 70,000 cubic metres.
Yes. It can run around the clock, or on a wall timer. It’s been ruggedly built to run 24/7.
About 15,000 hours. That is roughly two years in normal use.
Replace the rear filter on the back about every three months, depending on how dirty it gets. It takes less than 30 seconds (snaps on and off) needs no tools, and your own staff can do it. Replacement filters cost just $3.00 each.
The UV tubes typically last two to four years in normal use and we supply replacements. Depending on the environment, occasionally open the UV SG15,000 and wipe down the tubes with soap and water, or preferably alcohol, and let them dry thoroughly before turning the unit back on. Again, you can do it yourself. You don’t need a maintenance contract.
No.
13 kg, with a carry handle on top. It is 61 cm long, 23 cm wide and 18 cm high. One person can easily carry it. Â
220 to 240 volts, 50Hz, 650 watts maximum. It plugs into a normal socket.
Not Sure Which Size You Need?
Tell us the room, what is in it and how bad it gets. We will tell you which machine fits and what setting to run it on.
We have been supplying these to hotels, food courts, building managers, hospitals and restoration contractors across Singapore and Malaysia since 2006.
